ASTM E747 Stainless Steel Wire Penetrameters (Set B)


Learn More About This Product
Name(Required)
Hidden
Hidden

SKU 020-20-28 Categories , ,

Description

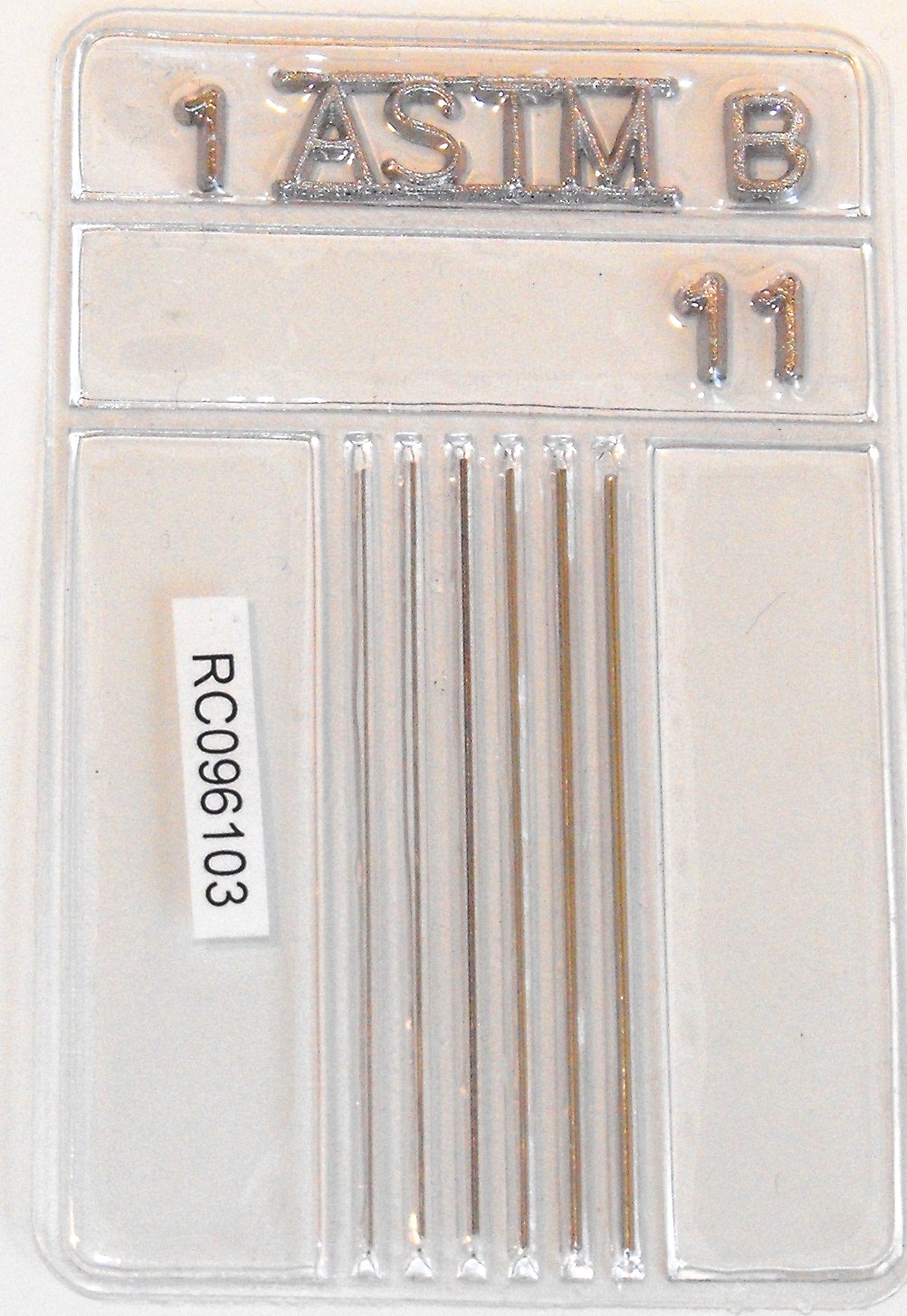

Wire type penetrameters, set “B”, stainless steel, 2″ (50mm) wire length.

This set of steel wire penetrameters contains wire sizes 6 to 11.  Per ASTM E747 “Standard Practice for Design, Manufacture and Material Grouping Classification of Wire Image Quality Indicators (IQI) Used for Radiology”

Accepted by ASME sec. V and AWS as an alternative to plaque type IQI’s.

Encapsulated in vinyl for durability.



Wire # mm Inch
6 0.25   0.010
7 0.33   0.013
8 0.40   0.016
9 0.51   0.020
10 0.64   0.025
11 0.81    0.032
