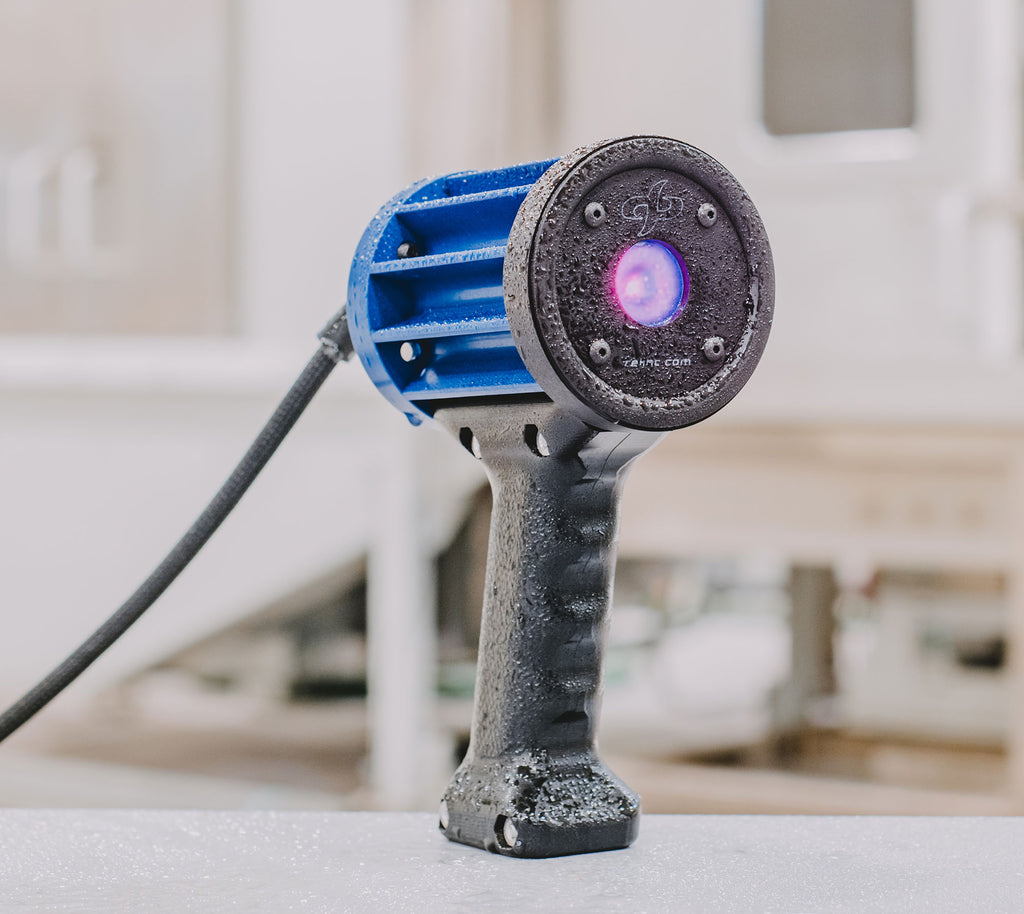

C4 Magnum LED UV-A Inspection Lamp

The REL C4 Magnum Glo-Black LED UV-A inspection lamp utilizes the latest in safe high output UV-A LED technology. This Glo-Black LED UV-A inspection lamp is a highly maneuverable lightweight solution that maximizes operator safety and time on task. The C4 Magnum contains 4 high flux-UV LED emitters that have a built in static-electric discharge circuit to allow the light to perform in all environments regardless of ambient conditions.


Learn More About This Product
Name(Required)
This field is hidden when viewing the form
This field is hidden when viewing the form

SKU UV-2000 Categories , , ,

Description

The C4 Magnum-GO provides a 10-inch diameter of UV-A intensity >1000 µW/cm² at 15 inches. The integral filter in the UV-A emitter limits the visible light to 20 lux (1.86 foot-candles) at 15 inches and 5 lux (0.47 foot-candles) at 36 inches. The LED white light provides an intensity > 700-foot candles at 15 inches. The lamp’s electrical components are IP67 sealed and passively cooled within an engineered finned housing manufactured from military-grade aluminum. The lamp performs in all environments regardless of ambient conditions. The C4 Magnum-GO LED UV-A with white light will survive the toughest, wettest, and most severe work environments on the planet!

  • UV-A and white light emitters for darker inspection environments.
  • Easy to use one hand controls with clear indicators for lamp on/off operation.
  • Visible Spectrum (white light) LED provides an intensity > 700 foot-candles at 15 inches.
  • Engineered fin housing allows for maximum heat transfer in the harshest environment.s
  • Built-in static-electric discharge unit safety feature.
  • AC Power: 120/240V.
  • Individual lamp dimensions: 7.6” H x 3.0” W x 4.1” D
  • Individual lamp weight: 1.7 lbs.
  • 2-year Warranty.
  • Refurbishable.
