Description

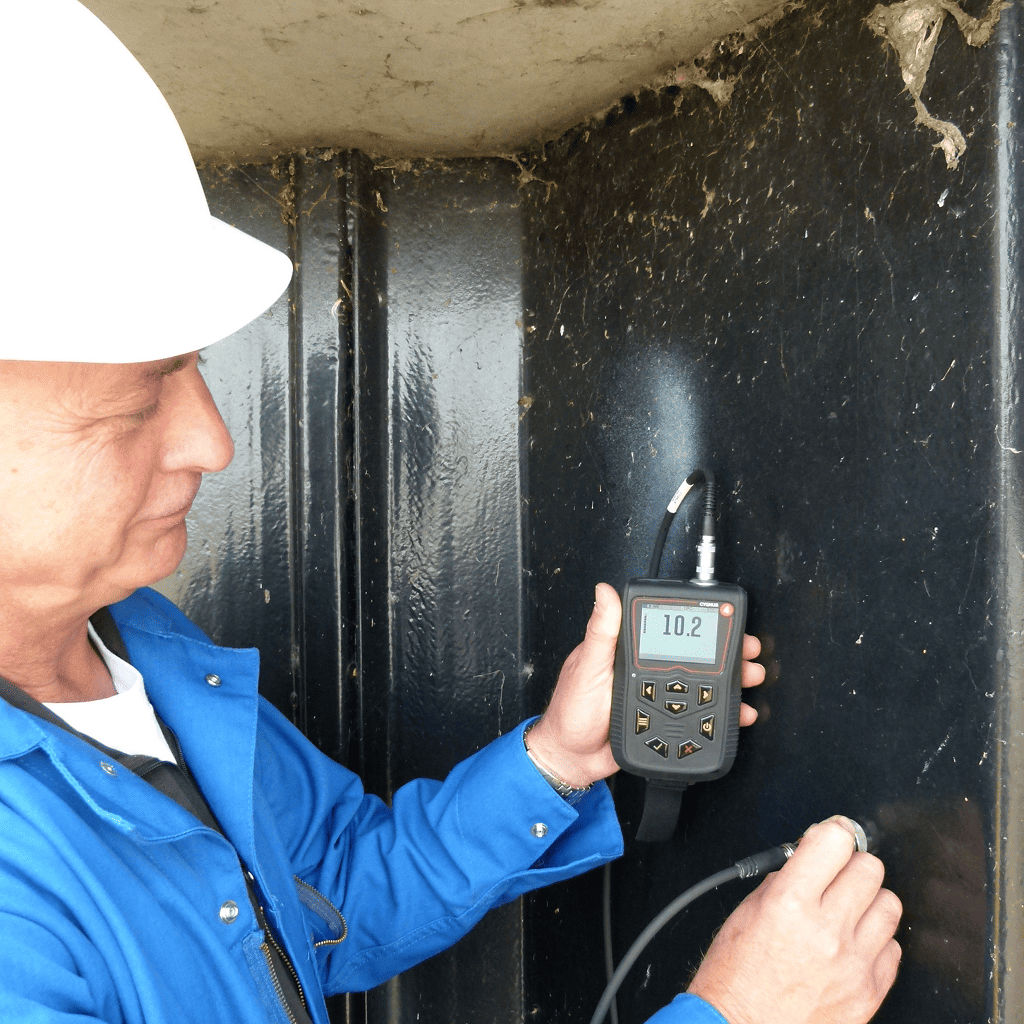

Key Features of the Cygnus 4 General Purpose Meter
- Multiple-Echo mode for accurate, through-coat measurements as specified by Classification Societies
- Deep Coat function ignores coatings up to 0.8 inch (20 mm) thick
- Simple, one-point calibration – no zeroing required
- Min/Max measurement limit functions
- Visual and vibrate alert
- Intuitive easy to use menu
- Large and bright front color LCD display
- Extremely rugged enclosure – shock and impact proof to US MIL STD 810G
- Environmental sealing (water and dust proof) to IP67 – US MIL STD 810G
- Can be upgraded to 4+ or 6+ at an additional cost.
Cygnus-Pioneered Multiple Echo Technique
- Uses three return echoes to give a truly accurate, error-checked metal thickness measurement – ignoring coatings up to 0.8 inch (20 mm).
- Accepted by all the major Classification Societies.
Multiple-Echo Ignores Coatings up to 0.8 inch (20 mm) Thick
| Materials | Velocities from 0.0390 – 0.3543 in/us (1,000 – 9,000 m/s) |
| Accuracy | ±0.002 inch (±0.05 mm) – in Multiple-Echo measurement mode, when calibrated and measuring the same material as calibrated on |
| Resolution | 0.005 inch (0.1 mm) or 0.002 inch (0.05 mm) |
| Transducer Options | Single crystal transducers |
| Measurement Range in Steel | 0.040 – 10 inch (1 – 250 mm) depending on selected transducer and configuration, material and temperature |
| Connector | 2 x Lemo 00 |
| Power | 3 x AA / R6 batteries |
| Battery Life | 10 hours continuous measurement |
| Electronics | Dual channel pulser |
| Display | 2.4 inch QVGA LCD, 47 x 37 mm |
| Size | 3.3 x 5.1 x 1.4 inch (84 x 130 x 35 mm) |
| Weight | 10.5 oz (300 g) (inc. batteries) |
| Operating Temp. | 14°F – 122°F (-10°C to 50°C) |
| Environmental Rating | IP67 MIL STD 810G Method 501.6 (high temp 131°F (+55°C)) MIL STD 810G Method 502.6 (low temp -4°F (-20°C)) MIL STD 810G Method 507.6 (humidity 95%) MIL STD 810G Method 512.6 (immersion 1 metre for 30 mins) |
| Shock and Impact | MIL STD 810G Method 514.7 (vibration) MIL STD 810G Method 516.7 (shock 20g) MIL STD 810G Method 516.7 (transit drop 1.22 m) |
| Standards | Designed for EN 15317 |
| Compliance | CE, UKCA, RoHS |
| Warranty | 3 years on gage and 6 months on transducer |
- Cygnus 4 gage
- Operating manual
- Neck strap
- Ultrasonic transducer
- Moulded transducer cable
- Accessory pouch, containing; 3 x AA batteries, blue couplant gel, 15 mm (or ½ inch) steel test block, spare membranes, membrane key, membrane couplant.
To compliment our ultrasonic thickness gages we offer a range of ultrasonic transducers. The performance of any ultrasonic thickness gage relies heavily on the transducer and its suitability to the material being measured. Therefore, selecting the right transducer is vital. All Cygnus SINGLE CRYSTAL transducers are made from stainless steel and include replaceable membranes for long life, requiring no zeroing and have a high linear accuracy.
