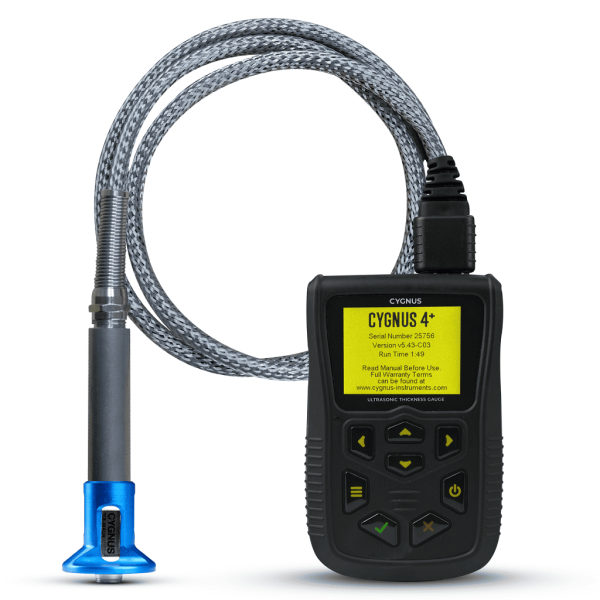

Description
- Echo-Echo and Single-Echo modes for heavily corroded metals with thin or no coatings
- Multiple-Echo mode for accurate measurements through coatings – as specified by all major Classification Societies
- Deep Coat function ignores coatings up to 0.8 inch (20 mm)
- Measurements can be taken on hot surfaces, up to 572°F, using the Cygnus High Temperature Transducer (T5B-MAUH)
- Manual and automatic gain control
- Min/max measurement limit functions with visual and vibrate alert
- One and two point calibration.
- Large front sunlight readable LCD display (with live A-scan / waveform)
- Water and dust tight IP67 housing
- Shock and impact proof to US MIL STD 810G
- Safe operation in explosive atmospheres: Class 1, Division 2, Group D locations only, as defined in NFPA 70, Article 500
- Can be upgraded to 6+ at an additional cost.
Using the T5B-MAUH high temperature transducer, measurements can be taken on hot surfaces of up to 572°F.
No cooling period is required – which can reduce inspection time and facilitate more effective measurement.
Optional upgrade to braided cable.
- Linear based data logging
- Technician can pre-define 8 different comments and then attach to any measurement point
- Auto-log feature
- Saves both measurements and corresponding A-Scans (waveforms)
- Logged points stored on SD card
- CygLink software used to transfer and manage data.
- Multiple-Echo mode uses three error checked back wall echoes to provide the most reliable and accurate remaining thickness measurements possible, with no need to remove coatings up to 0.8 inch (20mm) thick.
- Single-Echo mode is ideal for measuring uncoated metals with heavy front and/or back-wall corrosion. This mode is also effective on a range of cast metals, plastics and composites.
- Echo-Echo mode works best for measuring heavily corroded metals through thin coatings of up to 0.04 inch thick; ideal for measuring painted metals with heavy back wall corrosion.
Exclusive to Cygnus, MSI™ ensures stable and therefore reliable measurements are displayed in Echo‑Echo and Single-Echo modes.
Multiple-Echo Ignores Coatings up to 0.8 inch (20mm) Thick
| Measuring Modes | Multiple-Echo using 3 echoes to ignore coatings up to 0.8 inch (20 mm) thick Echo-Echo using 2 echoes to ignore coatings up to 0.04 inch (1 mm) thick Single-Echo using 1 echo |
| Materials | Velocities from 0.0390 – 0.3543 in/us (1,000 – 9,000 m/s) |
| Accuracy | ±0.002 inch (±0.05 mm) – in Multiple-Echo measurement mode, when calibrated and measuring the same material as calibrated on ±0.004 inch (±0.1 mm) or 0.1% of thickness measurement whichever is the greatest – in Single-Echo & Echo-Echo measurement modes, when calibrated and measuring the same material as calibrated on |
| Resolution | Multiple-Echo mode – 0.005 inch (0.1 mm) or 0.002 inch (0.05 mm) Single-Echo and Echo-Echo modes – 0.005 inch (0.1 mm) or 0.001 inch (0.01 mm) |
| Transducer Options | Single crystal transducers, Twin crystal transducers and High temperature transducer |
| Measurement Range in Steel | 0.031 – 10 inch (0.8 – 250 mm) depending on selected transducer and configuration, material and temperature |
| Connector | 2 x Lemo 00 |
| Power | 3 x AA / R6 batteries |
| Battery Life | Approx. 10 hours continuous measurement |
| Electronics | Dual channel pulser |
| Display | 2.4 inch QVGA LCD: 47 x 37 mm |
| Size | 3.3 x 5.1 x 1.4 inch (84 x 130 x 35 mm) |
| Weight | 10.5 oz (300 g) (inc. batteries) |
| Operating Temp. | 14°F to 122°F (-10°C to 50°C) |
| Data Logging | 5,000 measurements and A-scans per record. Max number records: 100 (soft limit) |
| Computer Software | CygLink allows remote logging and viewing of A-scan graphs Survey and report generation to PDF file Graphic analysis of data and statistical calculations |
| Environmental Rating | IP67 Safe operation in Explosive Atmospheres: Class I, Division 2, Group D Locations only, as defined in the National Fire Protection Association Code (NFPA 70), Article 500. Tested using MIL-STD-810G, Method 511.5, Procedure I MIL STD 810G Method 501.6 (high temp 131°F (+55°C)) MIL STD 810G Method 502.6 (low temp -4°F (-20°C)) MIL STD 810G Method 507.6 (humidity 95%) MIL STD 810G Method 512.6 (immersion 1 metre for 30 mins) |
| Shock and Impact | MIL STD 810G Method 514.7 (vibration) MIL STD 810G Method 516.7 (shock 20g) MIL STD 810G Method 516.7 (transit drop 1.22 m) |
| Standards | Designed for EN 15317 |
| Compliance | CE, UKCA, RoHS |
| Warranty | 3 years on gage and 6 months on transducer |
