Description

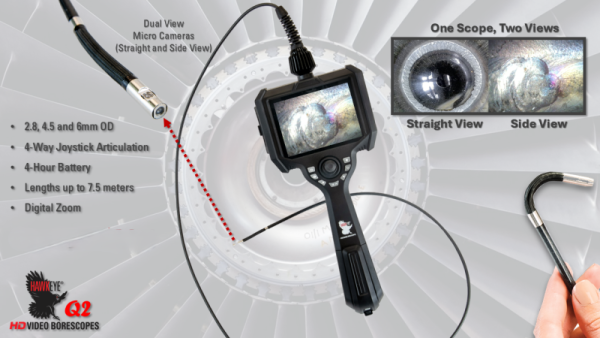

Gradient Lens Hawkeye® Q2 HD Video Borescope features diameters of 2.8, 3.9 and 6mm. The Q2 features new technology that will allow our customers to change insertion tubes, and offer a dual 0 and 90 camera view. The Q2 Video Borescopes offer 4-way joystick articulation, image and video capture, and 4 hour battery life combined with a compact, portable and durable design. Expanding on the popular Hawkeye V2 and V3, which were launched in 2012, the new Q2 incorporates technological advancements that expand the offering of video borescopes offered by Gradient Lens Corporation. The Q2 easily displays and captures crystal clear video and still images, and does so using a lightweight, and user-friendly compact design. The Q2 is a valuable tool for our customers who have a variety of length and diameters needs but don’t have the budget to purchase multiple systems.
| Diameter | 2.8, 4.5 and 6.0mm (.110, .177 and .236″ ) |
| Lengths | 2.8: 1.5m (4’11”)* 4.5: 1.5meter (4’11”), 3meter (9’10”)* 6mm: 1.5meter (4’11”), 3meter (9’10”), 6.0m (19’8″), 7.5meter (24’6″) |
| Articulation | 1.5 length: +/-140° min. (+/-10°) 1.5 – 3.0m length: +/-140° min. (+/- 10°) 7.5m length: +/-100° min. (+/- 10°) |
| Field-of-View | 0° DOV: 100° Diagonal +/- 10° ** 90° DOV: 90° Diagonal +/- 10° ** |
| Depth-of-Field | 2.8mm: 0° DOV: 3mm – infinity 90° DOV: 2mm – infinity 4.6 and 6mm: |
| Direction-of-View | 0 & 90° (Dual View) |
| Sheath | Tungsten Braid |
| Illumination | 2.8mm: Front LED
4.5 and 6mm: |
| Display | 5″ HD Display |
| Camera | 2.8mm: 400X400 CMOS 4.5 and 6mm: |
| Interfaces | HDMI, USB, Micro-SD |
| Battery | 4 hr. run time, Rechargeable Li-Ion |
| Recording Media | Micro-SD Card |
| Digital Photo Format | JPEG |
| Video Format | MPEG 4 |
| Operating Temp. Range | Probe: – 20 to +60C (-4 to +140 F) : Display Unit: -10to +50C (14 to +122F) |
| Storage Temp. Range | – 20 to + 60 C (-4 to +140 F) |
| Weight | 2.2LB |
| Environmental | Sheath: IP67 Host: IP54 |
| Note | * Longer lengths available upon request. ** FOV varies depending on resolution setting. Custom FOV available upon request. *** Custom Depth of Field available upon request |
| Diameter | Length | Articulation | Sheath | Model# |
| Q2 Kit Includes: Hawkeye Q2 Dual View Video Borescope, Micro-SD Card, Micro-SD/USB converter, cables, and rugged carrying case. | ||||
| 2.8mm | 1.5m (4’11”) | 4-Way | Tungsten | VQ2 028 1500 4DL |
| 4.5mm | 1.5m (4’11”) | 4-Way | Tungsten | VQ2 045 1500 4D |
| 4.5mm | 3.0m (9’10”) | 4-Way | Tungsten | VQ2 045 3000 4D |
| 6.0mm | 1.5m (4’11”) | 4-Way | Tungsten | VQ2 060 1500 4D |
| 6.0mm | 3.0m (9’10”) | 4-Way | Tungsten | VQ2 060 3000 4D |
| 6.0mm | 7.5m (24’6”) | 4-Way | Tungsten | VQ2 060 7500 4D |
| Q2 Dual View Insertion Tubes Only | ||||
| 2.8mm | 1.5m (4’11”) | 4-Way | Tungsten | VQR 028 1500 4DL |
| 4.5mm | 1.5m (4’11”) | 4-Way | Tungsten | VQR 045 1500 4D-1 |
| 4.5mm | 3.0m (9’10”) | 4-Way | Tungsten | VQR 045 3000 4D-1 |
| 6.0mm | 1.5m (4’11”) | 4-Way | Tungsten | VQR 060 1500 4D-1 |
| 6.0mm | 3.0m (9’10”) | 4-Way | Tungsten | VQR 060 3000 4D-1 |
| 6.0mm | 7.5m (24’6”) | 4-Way | Tungsten | VQR 060 7500 4D |
| Q2 Video Borescope Spare Battery | VQ2-BATT-DV | |||
| Q2 Video Borescope Host | VQ2-HOST-DV | |||
| Q2 Video Borescope Replacement Charging Cable | VQ2-CHGCBL-DV | |||
| Q2 Video Borescope Replacement HDMI Cable | VQ2-HDMI-CABLE-DV | |||
| Q2 Video Borescope Case (under 6 meter) | VQ2-CASE-DV | |||
Hawkeye Q2 HD Videoscope Brochure
