Hawkeye V3 HD Videoscope

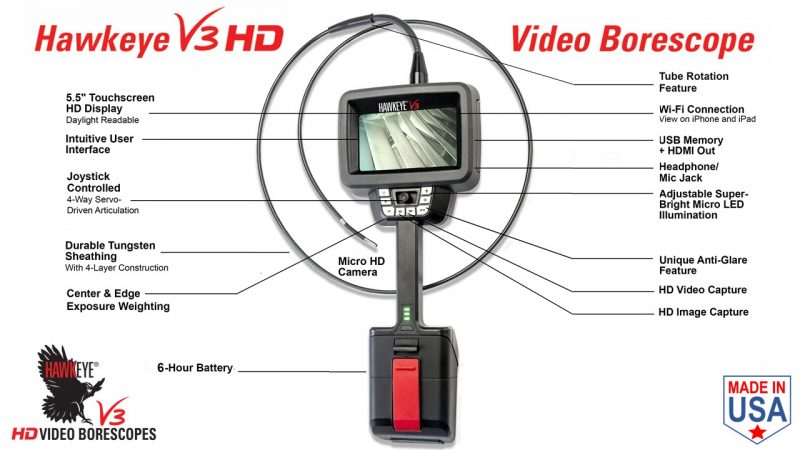

Hawkeye® V3 HD Video Borescopes simply deliver the best image quality of any borescope on the market today! The V3 HD features a new Micro HD video camera, (6X better resolution than the V2), 4-way articulation, HD daylight readable color touchscreen display, integrated adjustable LED illumination and WI-FI Connection. The V3 Deluxe Kit also includes the 90 degree tip, Close Focus Tip, Neck Strap, Tripod and extra battery.


Learn More About This Product
Name(Required)
This field is hidden when viewing the form
This field is hidden when viewing the form

Description

The Hawkeye® V3 Video Borescope features a new Micro HD video camera, and custom-engineered image processor. The 4- and 6-mm Hawkeye V3’s deliver simply the best image quality of any borescope on the market today! Video footage, and still images, captured by the V3 appear crystal clear and with vibrant, lifelike colors. Building on the popular Hawkeye V2 Video Borescope, which was launched in 2012, the new Hawkeye V3 incorporates significant technological advancements, and represents the next generation of video borescopes designed and manufactured by Gradient Lens Corporation. The V3 also incorporates a large, 5.5-inch HD, daylight readable, touch-screen display. The V3 easily displays, captures, and transmits over WiFi, crystal clear High-Definition (HD) video and still images, and does so using a sleek, ergonomic design, superior construction, and intuitive user interface.” The Hawkeye V3 is a valuable tool for numerous manufacturing quality control applications . . . in the QC Lab and on the shop floor. The V3 is also an essential tool for aircraft, and power generation, windpower, and engine and systems maintenance teams. The fully portable V3 provides fast, accurate diagnostics, in mission-critical situations, without the need for costly, time-consuming engine teardown. Interchangeable 90-degree and close-focus optical tips are optional. The smooth servo-driven articulation range is +/- 180 degrees. The V3 can operate continuously for 6 hours without the need for recharging. The V3 contains an integrated, high-efficiency Micro LED light source.

Diameter 4.0 or 6.1 mm
Lengths 1.5 3.0 and 8.0 meters
Articulation 1.5 – 3.0m length: +/-170° min. Artic tolerance will be +10° -0°
8.0m length: +/-160° min. Artic tolerance will be +10° -0°
Field-of-View 70° Diagonal
Depth-of-Field 18 mm – ∞
Depth-of-Field w/CF Tip 6 – 35 mm
Direction-of-View 0°, 90° with optional Prism Tip
Sheath 2 mil Tungsten Braid, durable 4-layer construction
Illumination Integrated White LED
Display 5.5″ HD, High Brightness, Daylight Readable
Camera 1280 X 720p CMOS
Frame Rate 30 Frames Per Second
Interfaces HDMI, USB 2.0 flash memory, USB Mini B for computer interface, 3.5 mm headset/mic jack
Power AC input: 100 – 240 VAC, 50 – 60 Hz, 1.5 A Max, DC Output: 24V, 2.5 A
Battery 6 hr.run time, 14.4 V, 92 Wh Lithium Ion
Recording Media USB Thumb Drive
Digital Photo Format JPEG
Video Format MPEG 4
Operating Temp. Range Tip: – 25 to +80C (-13 to +176 F), Display Unit: -20 to +46C (-4 to +115F)
Storage Temp. Range – 25 to + 60 C (-13 to +140 F)
Weight 5.4 lbs
Environmental Sheath: IP67, Waterproof to 9 ft. (4 psi/.275 bar)

Diameter

Length Articulation Sheath Model#
V3 Standard Kits: Include V3 Video Borescope, Battery Charger, 16GB USB Flash Drive and Rugged Carrying Case
4mm 1.5m (4’11”) 4-way Tungsten V3 040 1500 4
4mm 3.0m (9’10”) 4-way Tungsten V3 040 3000 4
6mm 1.5m (4’11”) 4-way Tungsten V3 060 1500 4
6mm 3.0m (9’10”) 4-way Tungsten V3 060 3000 4
6mm 8m (26’3″) 4 way Tungsten V3 060 8000 4

V3 Deluxe Kits: Include all standard kit items plus 90° Prism and Close Focus Tips, Stand, Rigidizer, Neck Strap and Spare Battery
4mm 1.5m (4’11”) 4-way Tungsten V3D 040 1500 4
4mm 3.0m (9’10”) 4-way Tungsten V3D 040 3000 4
6mm 1.5m (4’11”) 4-way Tungsten V3D 060 1500 4
6mm 3.0m (9’10”) 4-way Tungsten V3D 060 3000 4
6mm 8m (26’3″) 4 way Tungsten V3D 060 8000 4

Close-Focus Tips
4mm   V3 TIP 4CF

6mm

  V3 TIP 6CF

90º Prism Tips
4mm   V3 PTIP 4 90
6mm   V3 PTIP 6 90

V3 Rigidizers
4mm   V3 RT4
6mm   V3 RT6

V3 Stand
    V3 STAND
V3 Battery
    V3 BATT
V3 Battery Charger
    V3 CHARGER
V3 Neck Strap
    V3 STRAP


Brochure

Hawkeye V3 HD Videoscope Brochure
