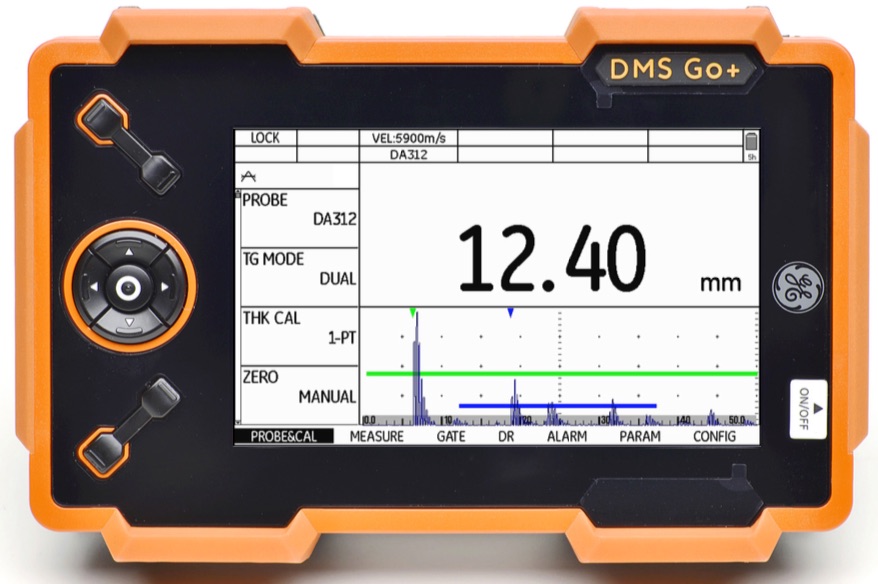

Waygate Technologies DMS Go+ Ultrasonic Thickness Gauges

The DMS Go can be upgraded to include numerous features/functions. Features/functions can also be added at a later time. See DMS Go Series chart below.

With the patented “TopCOAT“ method we have been able to optimize the corrosion measurement through paint coatings: this method makes it possible to measure materials showing heavy corrosion on backwall surfaces, and even the slightest pitting can be detected thanks to a high gain. The paint coating and base metal are measured in one measurement process, and displayed simultaneously.

If your components are uncoated, you have the Auto-V feature at your disposal. It is a clearly simplified version of the conventional thickness measurement and, as such, a unique method. Auto-V even allows you to measure the thickness of components with unknown material velocity. This enables you to measure different uncoated materials without any additional calibration – and without any calibration standards. It’s not necessary to know the material velocity to be able to measure – this previous disadvantage no longer exists.

The DMS Go offers powerful data recording and data management capability to meet the most demanding of thickness gauging and corrosion inspections. Important features include:High Capacity Data Recorder and Compatibility with Powerful Data Management Systems,powerful on-board data recorder has capacity of hundreds of thousands readings and permits the storage of A-scan, B-scan and MicroGRID attachments to thickness readings,data can be organized using pre-set (linear, grid, boiler), custom (custom linear, custom grid) or advanced (3D and 4D in UltraMATE) files structures,Data transfer is via industry standard removable SD card up to 16 GB,A USB port is included to allow instrument to PC connection if preferred – no driver needed, works with all versions of Windows,export in different file formats (xls, html, dat, csv, pdf…) to allow easy integration with user data management softwares and user quality control systems,compatible with UltraMATE and UltraMATE lite data management programs to allow for comprehensive analysis and documentation of data and the data recorder files can be interfaced with other 3rd party software programs using a GEsoftware development kit, supplied on CD.

The DMS Go’s on-board Data Recorder makes all the options for up-to-date documentation and modern data management available to you:Memory capacity for 150,000 readings and 1,100 A- or B-scans (extendable),flexible adaptation to the measurement task by eight different file structures – according to the arrangement of measuring points most often encountered,subsequent insertion/deletion of readings within a file,storage of additional information for each measurement location: probe, material velocity, date, time, calibration, etc,comment line with 64 characters accessible at any time and microgrid: You can insert up to 81 readings, in 2 x 2 to 9 x 9 grids, per measurement point at any time during the test using this function. By doing this, an analysis can be made in the direct vicinity of a critical measurement point.

A standard USB connection to allow data to be downloaded from the flaw detector for further analysis or storage. The instrument is standard delivered with a 2 GB SD memory card (can accommodate up to 16GB card size). Reports are produced in jpeg or bmp format so there is no need for special reading software. A simple on-board data logger to collect and save thickness measurements.

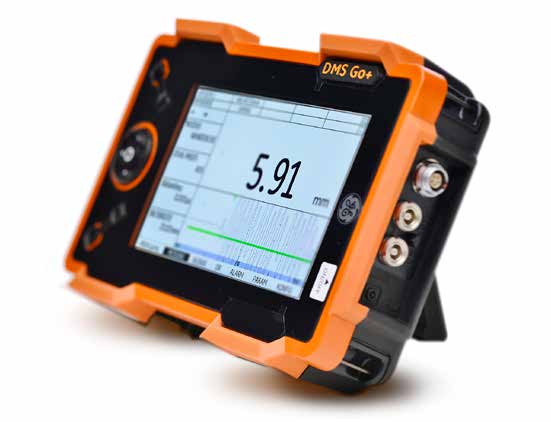

The DMS Go ultrasonic thickness gauge has been ergonomically designed to provide an instrument which is light, small and easy to use in the harshest inspection environments. Minimized housing size when used in difficult-to-access areas. Optimized display size to improve readability and echo separation. One hand operation for security. Light weight (870 g/1.9 lb). Integrated stand. Can be used with regular camera and industrial tripods. Main controls are under the thumb: gain, free defined keys. A “Flip” function allows the instrument to be used equally well by left-handed and right-handed people.

A robust moulded rubber casing to withstand the harshest environments and significantly reduce downtime. IP 67 immersion test (P67 / IEC529 – dust proof / dripping water proof as per IEC 529 specification for IP67 classification). Drop test (514.5 Procedure II; 516.5 Procedure IV). Vibration test (Mil-Std-810F; 514.5-5 Procedure I, Annex C).
